The cutting line is not aligned with the engraving pattern

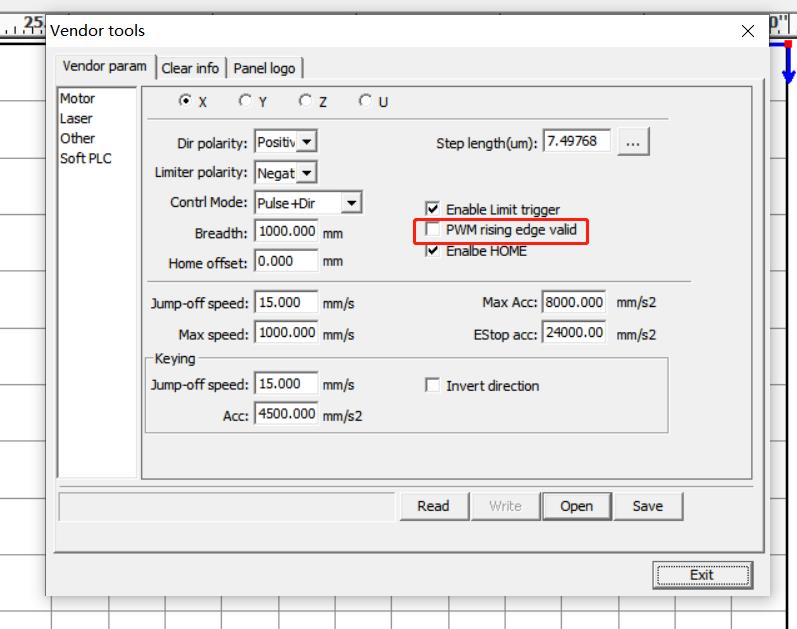

Open the software and adjust the PWM for the X-axis motor (as shown).
- Access "Vendor param" (password: rd88888) and click "Motor".
- Sequentially click "X", "Y", "Z" (if applicable), and "U"(if applicable).

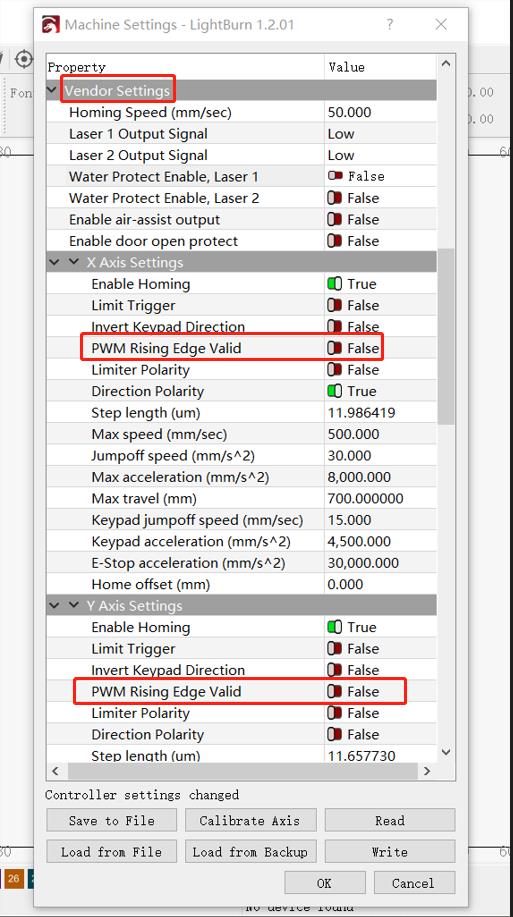

- In the window that opens, tick the box before PWM rising edge valid" if it is not ticked. Untick it if it is ticked (as shown).
