Lines distorted when cutting
- Import the machine para (refer to the video).
- Set the cutting speed to be lower than 30mm/s.
- Fasten all three mirrors and the focal lens.

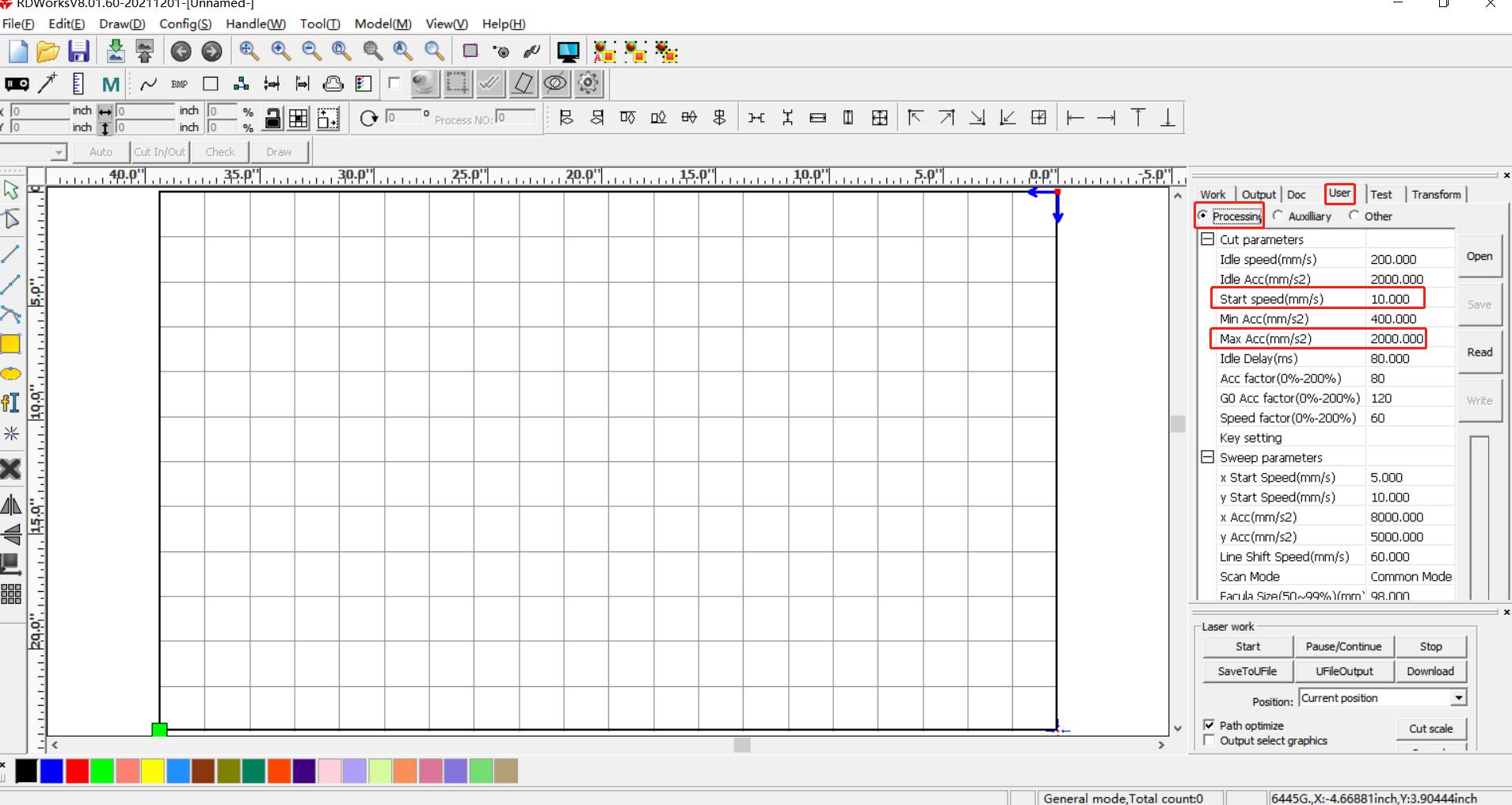

- Lower the value of "Start speed " and "Min Acc" either through RDworks or LightBurn, depending on which software is being used (as shown).
- Adjust the tension of the Y-axis belt.
- Check if the Y-axis coupling has loosened.
