X and Y axes non-responsive, button glowing green after 1 minute
In most cases, this might be caused by a faulty motor driver board. Troubleshoot by the steps below.
Remove the bottom plate (as shown).

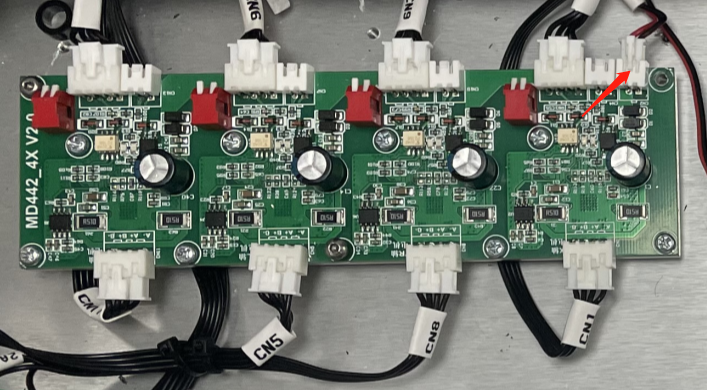

- Check the status of the indicator light on the motor driver board.
- If the indicator light is not on, measure the voltage of the power input of the board (as shown).
- If the plug reads 24V, the board is faulty. Replace it with a new, identical one.
