Reverse movement when axis resetting
- Restore factory parameters>>.
- If the problem persists,

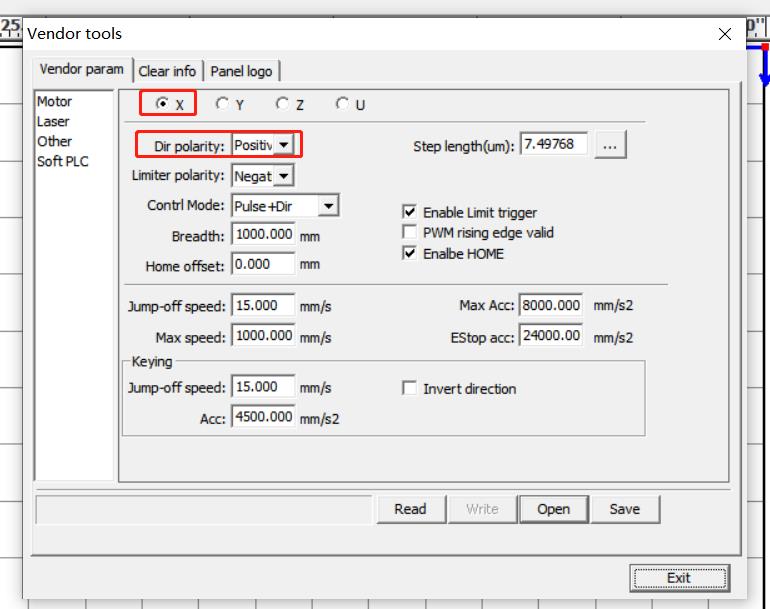

- In RDWorks, access "Vendor param".(password: rd8888)
- Click the dropdown after "Dir polarity".
- Choose "Positive" if the value has been "Negative" and vice versa. (as show
- Tick the box before "Invert direction" (as shown). Only do this if you find the keys are controlling the axis to move in the opposite direction. For example, you press up, but the axis is moving down.
