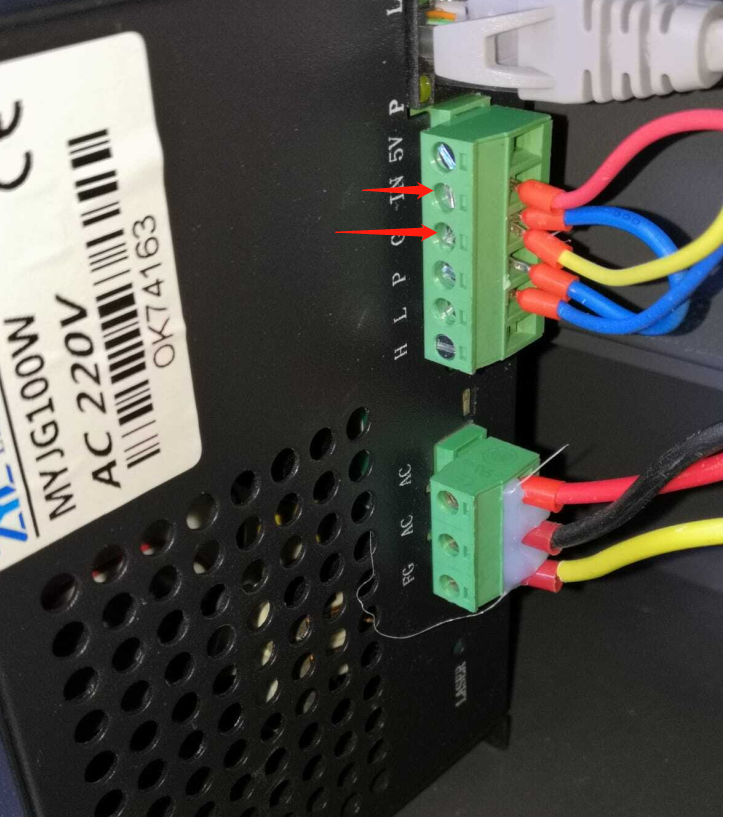

Measure the voltage between the IN and GND of the laser power supply 6-pin terminal with the power set at different levels.

• If the voltage measures similar, the mainboard is faulty. Replace it with a new, identical one.
• If the voltage varies with the power setting, the laser power supply is faulty. Replace it with a new identical one.
