How do I properly lubricate the Rail system?
Warning!
Disconnect the engraver from power before lubricating the rail.
Lubrication Schedule: Every two weeks
Tools Needed:
- Cotton cloth
- White lithium grease
Step 1: Disconnect the engraver from power.
Step 2: Gently move the laser head out of the way.

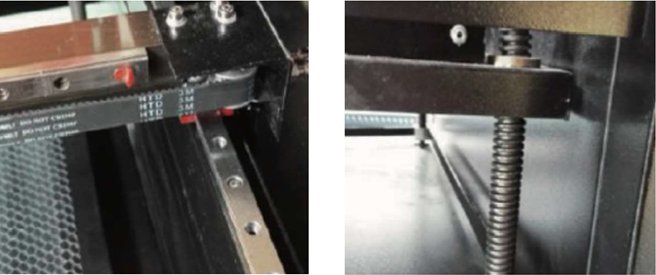

Step 3: Wipe away all dust and debris along the X and Y axis rails with a dry cotton cloth until they are shiny and clean. Do the same to the Z-axis screws.
Step 4: Lubricate both the rails and screws with white lithium grease.
Step 5: Gently move the laser head and X-axis to coat the lubricant evenly along both rails.
Step 6: Raise and lower the workbed to distribute the lubricant evenly along the screws.
