Warning!

Disconnect the engraver from power before cleaning.

Cleaning Frequency: Daily, after each use

Caution!

• The surfaces of these mirrors are prone to scratches. Avoid touching the mirrors with your fingers or pressing too hard, as this can cause scratches by grinding debris into the lenses.
• Remember to let the clean fluid used for cleaning dry before further use.

Tools Needed:

• Lens brush
• Laser-safe microfiber cloth/cotton swab
• Alcohol/laser-safe cleaning solution

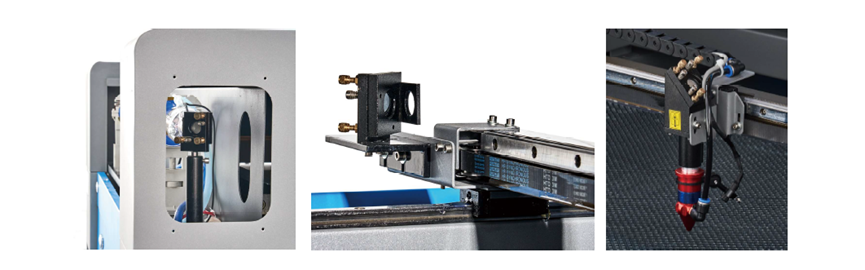

*The exact mirrors on your model may differ from those shown.

To clean Mirrors 1, 2, and 3,

Step 1: Remove the dust and debris using the lens brush.

Step 2: Dip the cloth or cotton swab in the solution and squeeze out the excess fluid.

Step 3: Wipe the lens clean with the cloth/swab using gentle, circular motions.
