Warning!

• Wear safety goggles during the entire aligning process.
• Avoid attaching the tape directly to the mirror.
• Less than 15% of the maximum power (not min.) should be sufficient to leave a clear mark without setting the testing tape on fire.
• Always make sure the path is clear between the laser and its target. Never allow foreign objects between the laser and its target. Always close the cover before firing the laser. Do not look directly at the active laser through the cover during this procedure.

The laser beam reflected by Mirror 1 will then hit Mirror 2. This means that when the laser tube is properly aligned to Mirror 1 and Mirror 1 is lined up to Mirror 2, aligning Mirror 2 will align it to Mirror 2.

Tools Needed: Masking tape

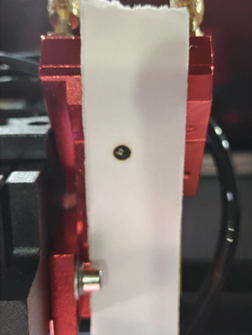

Step 1: Attach a piece of masking tape to the frame of Mirror 3.

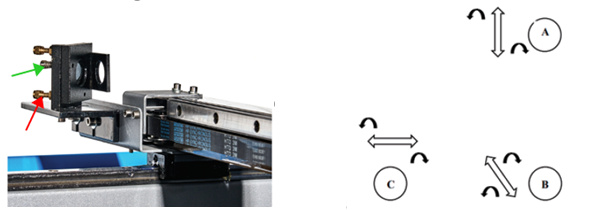

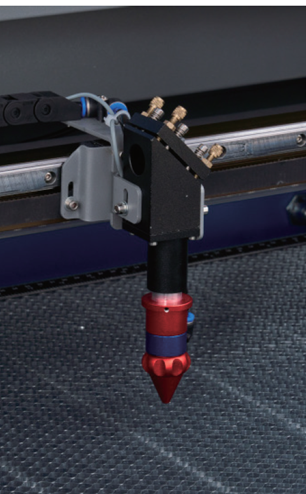

Cooper screws: Mirror 3 Setscrew
Black frame: Mirror 3 Frame

Step 2: Put on safety goggles, turn on the machine, and set the power level to 15% of the maximum power or lower.

Step 3: Close the cover.

Step 4: Fire the laser.

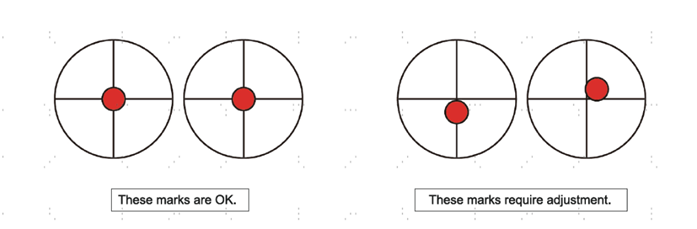

Step 5: Check that the burnt hole on the tape is at its center.

If not:

Step 6: Cut the power to your laser.

Note: If the last burnt hole is way off-mark, you may need to loosen the mounting bolts of Mirror 2 to slide it into a better position before fine-tuning the setscrews.

Step 7: Carefully turn the setscrews on Mirror 2 to adjust the angle and position of Mirror 2.

Note:

• Each screw adjusts to a different position or angle.
• Keep track of which screw you are adjusting and the direction of adjustment.
• Do not turn the screw more than ¼ turn at a time. Test the position of the laser after each adjustment so that you learn the effect of each change.

Silver screws: Setscrews
Cooper bolts: Mounting Bolts

Step 8: When finished with adjusting the setscrews of Mirror 2, repeat steps 2–7 until the burnt hole falls perfectly at the center of the tape on Mirror 3.
